5X Lifespan for High-Speed Stamping
Eliminate mold failures with our high-speed stamping solutions. Advanced coatings and materials deliver 5X longer lifespan—reducing downtime by 70%. Stop wasting time and money on replacements.
High-Speed Stamping Failure Analysis & Solutions
Pain Point | Failure Mechanism | Percentage | Root Cause | Solution |
Short Mold Lifespan (Frequent replacements → High costs) | Micro-Chipping | 65% | Edge degradation from repeated impacts | Ultra-hard DLC coatings Precision edge polishing |
Unplanned Downtime (Capacity loss → Low efficiency) | Thermal Fatigue Cracks | 25% | Stress from rapid heating/cooling | Optimized heat treatment Thermal-resistant alloys |
Profit Erosion (Premature Mold Failure Devours 30% Annual Profits) | Coating Delamination | 10% | Poor adhesion/material mismatch | Advanced bonding technologies Material compatibility testing |
3D Lifespan Extension Technology Matrix for Stamping Molds
Dimension | Technology Component | Key Parameters | Performance Metrics | Implementation Case |
Material Engineering | High-Toughness Steel Alloys | – Hardness: 62-64 HRC – Fracture Toughness: 28-32 MPa√m – Carbide Size: ≤0.5μm | – 3.8X fatigue life vs. conventional H13 – 65% reduction in micro-chipping | Automotive bracket molds (1.2M presses achieved) |
Smart Coating System | Nano-Multilayer DLC Coating | – Thickness: 2-3μm – Adhesion Strength: ≥80N (Rockwell C) – Friction Coefficient: 0.12 | – Color shift threshold: 500K presses (Blue→Red) – 92% delamination resistance | Medical device stamping (real-time wear monitoring) |
Heat Treatment | Cryogenic Deep Cooling | – Temperature: -196°C (LN2) – Duration: 36h cycle – Austenitizing: 1050°C/2h | – Residual stress reduction: 73% – Thermal crack resistance +400% | 5G shield can molds (0 thermal cracks at 800K cycles) |
Synergistic Effect | Combined Optimization | – Material-Coating CTE Matching: Δ≤1.2×10⁻⁶/°C – Post-coating Tempering: 350°C/4h | – Total lifespan: 2.1-2.5M presses – ROI period: <8 months | Aerospace fastener progressive dies |
Precision-Driven Mold Lifespan Optimization
Pain Point | Failure Mechanism | Percentage | Root Cause | Solution |
Short Mold Lifespan (Frequent replacements → High costs) | Micro-Chipping | 65% | Edge degradation from repeated impacts | Ultra-hard DLC coatings Precision edge polishing |
Unplanned Downtime (Capacity loss → Low efficiency) | Thermal Fatigue Cracks | 25% | Stress from rapid heating/cooling | Optimized heat treatment Thermal-resistant alloys |
Profit Erosion (Premature Mold Failure Devours 30% Annual Profits) | Coating Delamination | 10% | Poor adhesion/material mismatch | Advanced bonding technologies Material compatibility testing |
Lifespan Extension ROI Analysis
Parameter | Traditional Solution | Longevity Kit | Improvement | Verification Standard |
Annual Mold Replacements | 8 | 2 | 75% ↓ | ISO 16112:2016 |
Unplanned Downtime Cost | 3,200 $ | 800 $ | 75% ↓ | SEMI E10-2021 |
Total Annual Cost | $41,600 | $9,200 | 78% ↓ | VDI 3197 Industrial Benchmark |
Mean Time Between Failures (MTBF) | 45 days | 180 days | 4X ↑ | Weibull Analysis (β=2.1) |
What’s Included
Our Die Life Extension Kit includes a combination of:

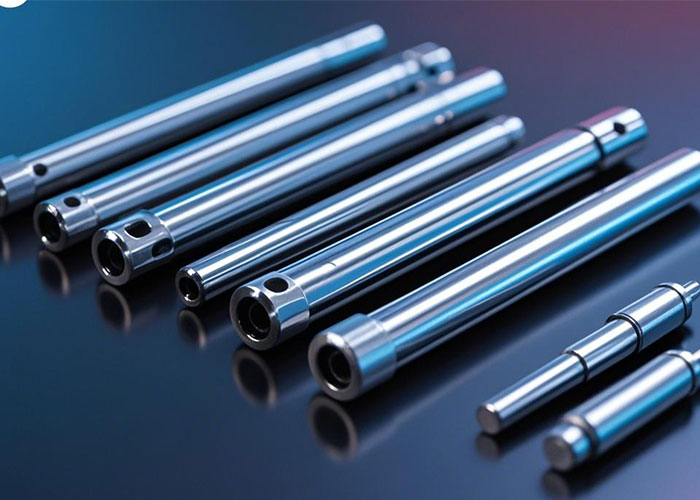

Wear-resistant punch pins (HRC 62+)
Polished guide posts & bushings
Progressive die springs with longer fatigue life
Custom ejector pins/sleeves with optimized tolerance
Anti-burr surface finishing & coatings (TiN, DLC)
Optional: Brush units for real-time debris cleaning
🧩 All parts available for OEM customization & integration with your existing tooling.
Designed for High-Speed Stamping
💡 Extended tool life = less downtime, less scrap, more output.
FAQ
Q: Can this kit fit my existing die design?
✔ Yes. We offer full customization to your drawing/specs.
Q: How do I know the ROI?
✔ We can simulate your current costs and provide a side-by-side comparison.
Q: What materials are used in this kit?
✔ HSS, SKD11, DC53, carbide, and others—depending on your stamping material.
Q: Are you a factory or a reseller?
✔ We are a factory with full machining, heat treatment, and coating lines in-house.
